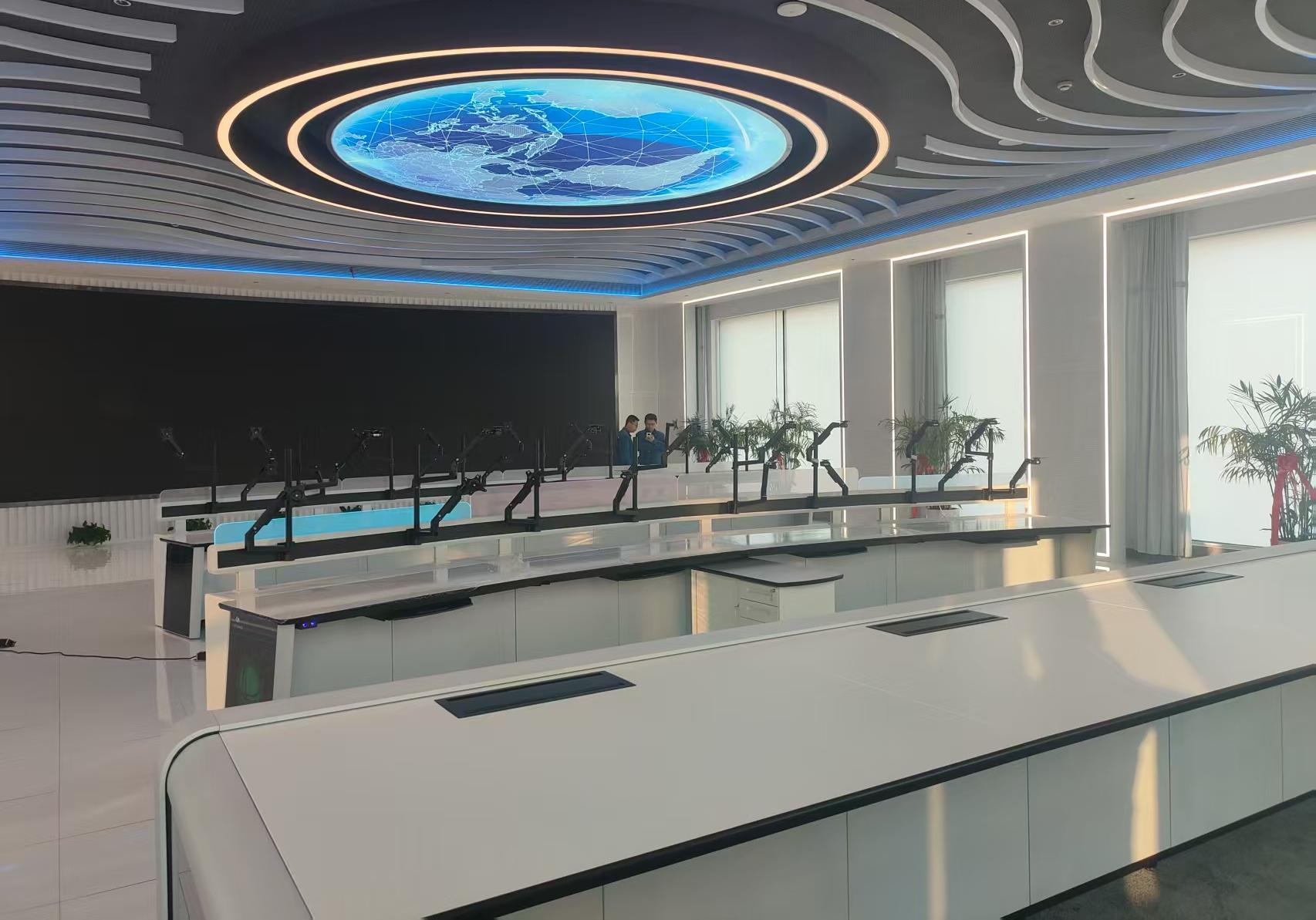

Ktronspace successfully delivered a fully customized KCA Series control room console solution for a national power grid control center, engineered to support 60 operator workstations within a high-density, mission-critical environment.
Case Details
60-Seat Straight & Corner Configuration | Power & Utility Sector Case Study
Executive Summary
Ktronspace successfully delivered a fully customized KCA Series control room console solution for a national power grid control center, engineered to support 60 operator workstations within a high-density, mission-critical environment.
By integrating robust structural engineering, advanced ergonomics, and seamless system compatibility, this project sets a new benchmark for scalable control room console systems in the global power and utility sector. The deployment combines straight row and corner console configurations, ensuring optimized workflow, enhanced collaboration, and reliable 24/7 operations.
Project Background & Challenges
As the operational core of a nationwide power transmission network, the control center required a solution capable of meeting strict performance and reliability standards:
- Supporting 60 simultaneous operators with clear visibility and independent workspace
- Ensuring continuous 24/7 operation under high-pressure conditions
- Integrating multi-screen monitoring systems, video walls, and communication networks
- Delivering long-term durability and simplified maintenance
- Enabling both focused individual work and efficient team collaboration
The Ktronspace Solution: KCA Series Custom Consoles
Ktronspace engineered a tailor-made KCA Series control console system, structured around two core configurations to maximize spatial efficiency and operational clarity.

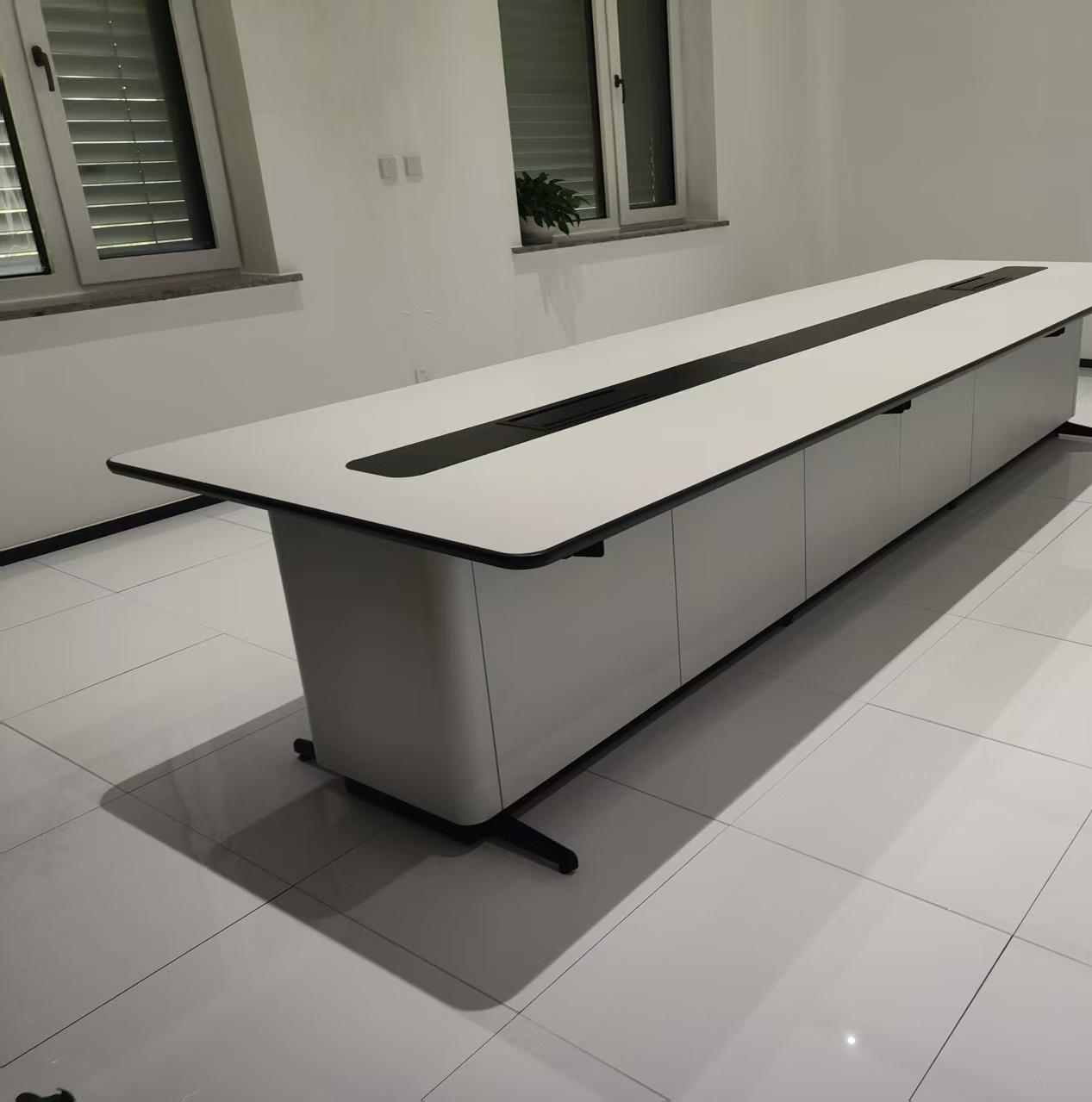

1. Straight Row Console Modules
Designed for clarity, uniformity, and high-density deployment:
- Linear layout ensuring uninterrupted sightlines to central video walls
- Reinforced modular steel framework supporting heavy multi-monitor setups
- Ergonomic workstation design with precision height adjustment
- Advanced horizontal & vertical cable management system
- Integrated ventilated equipment bays for stable thermal performance

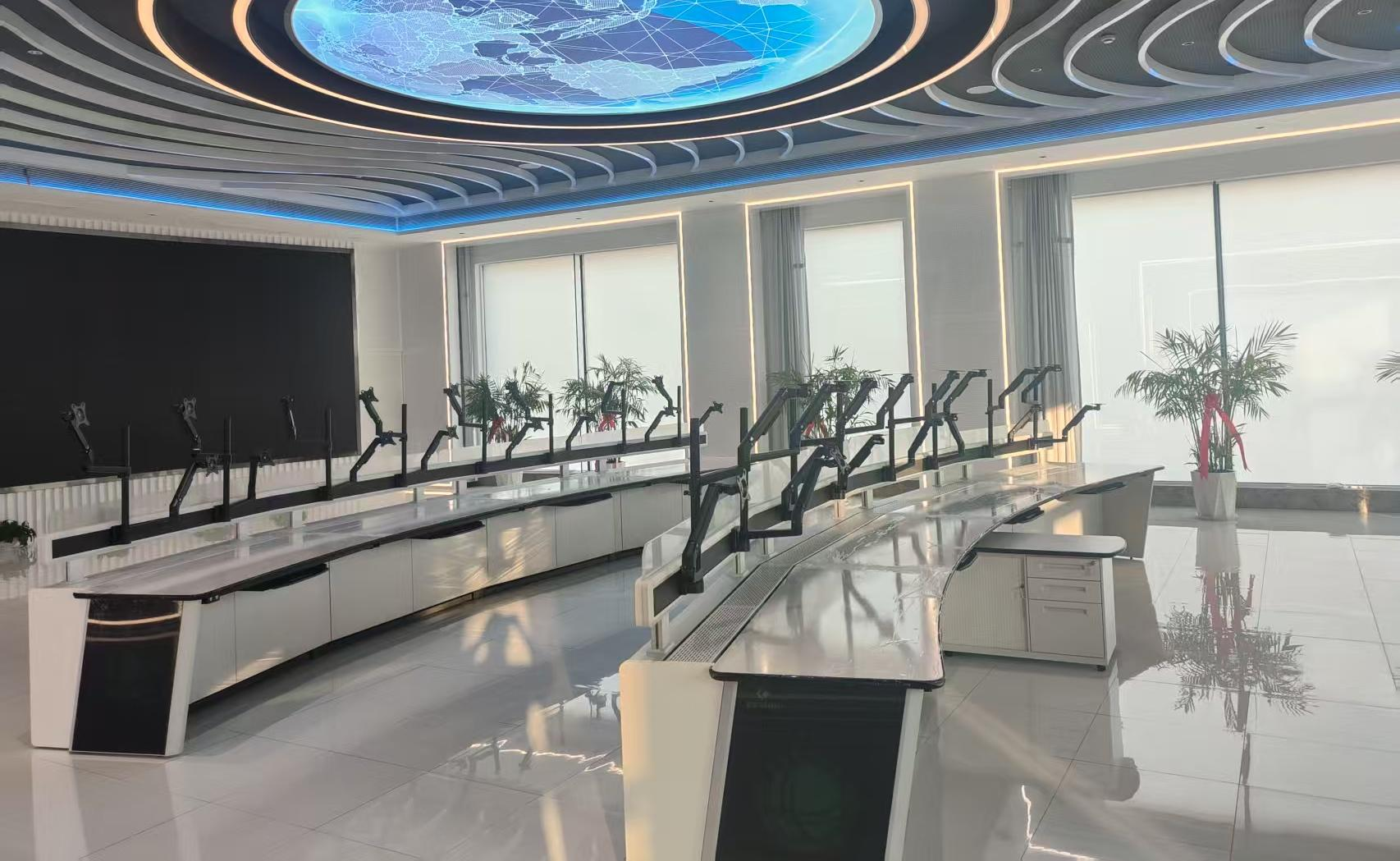

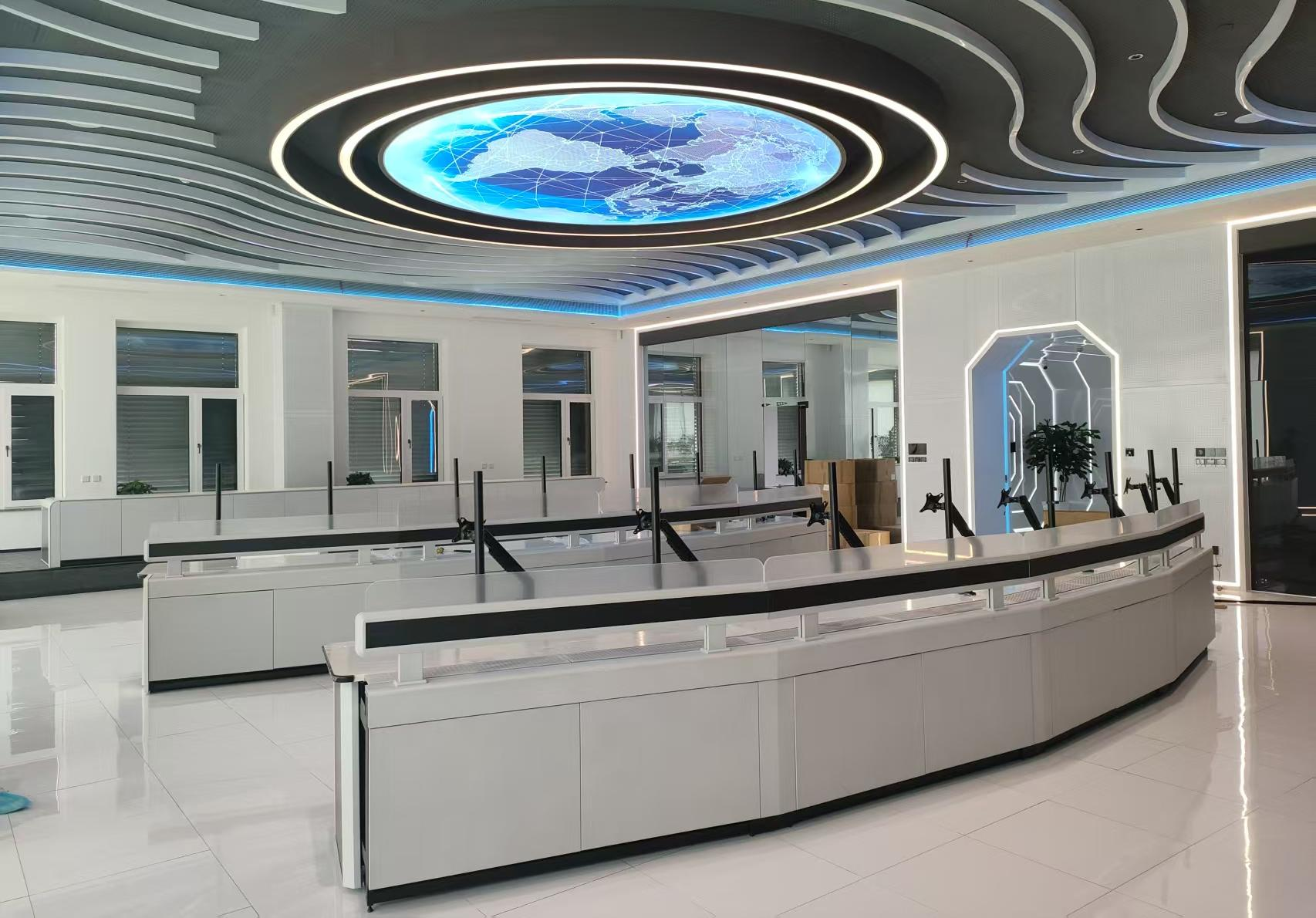

2. Corner Console Modules
Optimized for spatial efficiency and team interaction:
- Precision-engineered 90° and 120° corner units
- Radial work surfaces ensuring optimal viewing angles
- Seamless integration with straight modules for consistent design language
- Enhanced collaboration zones without sacrificing individual focus
- Custom mounting interfaces for specialized grid control equipment
Key Design & Engineering Advantages
Ergonomic Excellence for 60-Seat Operations
- Human-centric design optimized for long-duration shifts
- Dedicated workspace for each operator ensuring efficiency and comfort
- Flexible monitor arms supporting 2–4 displays per station
- Anti-fatigue edge profiling to reduce strain during extended use
Superior Structural Integrity
- Industrial-grade steel structure with high-precision fabrication
- Load capacity exceeding 200kg per workstation
- Vibration-resistant design for stable system performance
- Fire-resistant and ESD-safe materials compliant with power industry standards
Smart Cable & System Integration
- Dual-layer cable routing separating power, data, and fiber optics
- Tool-less access panels for fast maintenance and upgrades
- Pre-configured interfaces to reduce installation complexity
- Integrated airflow channels ensuring optimal thermal management
Scalability & Future-Proof Design
- Fully modular architecture enabling easy expansion or reconfiguration
- Compatibility with evolving power grid monitoring technologies
- Replaceable components for cost-effective upgrades
- Long lifecycle design reducing total cost of ownership
Project Implementation & Results
Client Value Delivered
- Fully integrated 60-seat operational hub with optimized visibility
- Improved efficiency through streamlined data access and control workflows
- Reliable 24/7 performance for mission-critical infrastructure
- High-end, modern control room environment aligned with global standards
- Reduced maintenance complexity and lower long-term operational costs
Conclusion
This national grid control center project demonstrates Ktronspace’s capability to deliver large-scale, high-performance control room console solutions tailored for the power and utility industry.
The KCA Series straight and corner configurations combine engineering precision, ergonomic excellence, and scalable design—transforming complex 60-seat environments into efficient, reliable, and future-ready control centers.
